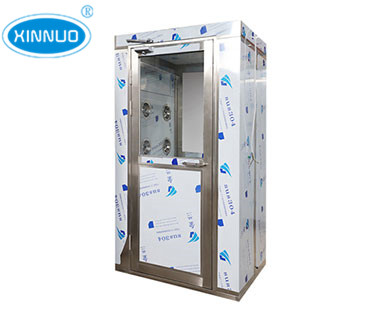

風淋室/貨淋室
Air shower shower room
產品介紹：Product introduction
風淋室是潔凈廠房和裝配式潔凈小室的設備，
用于吹除進入凈化廠房的人體和攜帶物品表面
附著的塵埃，同時風淋室也起到氣閘的作用，防
止未經凈化的空氣進入潔凈區域，是進行人體凈

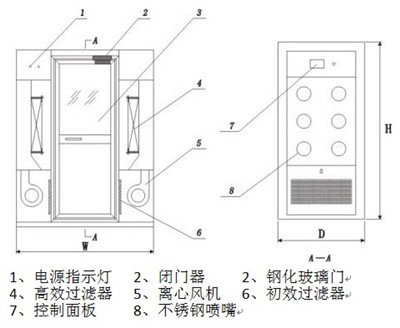

化和防止外空氣污染潔凈區的有效設備。風淋室內
的空氣由風機的作用經粗效過濾器進入靜壓箱，
經高效空氣過濾器過濾后，潔凈空氣從風淋室的噴
嘴高速噴出，噴嘴角度可調節，可有效吹除人體或
攜帶物品表面附著的塵埃，吹下的塵埃再回收進入中
效空氣過濾器，室內自循環以達到人、貨風淋的目的。
The shower room is clean workshop and fabricated
clean room equipment small,Except for blowing into the
body and purification workshop carry-on surface Adhere dust, at the same time also have the shower room of function, prevent air brake Check the air into the clean without purification, is the net To prevent the air pollution and the effective clean equipment. Air shower room The role of the air blower by coarse efficiency filters into plenum, The efficient air filter, air from the shower room of spray From mouth nozzle Angle adjustable, and can effectively blown apart human or The surface of belongings of dust and recycled into Effect of indoor air filter, since people, goods circulation in order to achieve the goal.
特點：Features
●系統自動感應噴淋，電子機械互瑣
●風淋時間0~99秒可自行調節
●可對開門或直角開門
●Automatic reaction system, electronic and
mechanical spraying mutual zoar
●The 0-99 seconds time can adjust themselves
●But to open or right-angle to open the door
構成材料及技術參數
Constitute the material and technical parameter
●外殼：不銹鋼或冷板噴塑
●External frane：Stainless steel or cooling-plate pensu
●門、底板、噴嘴及面板：不銹鋼
●Door, floor, nozzle and panel: stainless steel
●采用粗效、高效兩級過濾系統
●Using rough effect, efficient filter system
●風機：低振動、低噪音進口或國產風機
●Fan: low vibration, low noise, imported or domestically fan
●風速：20~28m/s
●Winds: 20~28 m/s
型號尺寸及其他參數Standard specification
規格型號Specifications | XN-129 | XN-159 | XN-159 | XN-200 | XN-230 |
風淋室尺寸L×W×H(mm) Air shower room size | 1290×1000×2050 | 1590×1000× 2050 | 1590×2000× 2050 | 2000×2000× 2050 | 2300×2000× 2050 |
風淋區尺寸L×W×H（mm） The area size | 790×910× 1930 | 790×910× 1930 | 790×910× 1930 | 1200×1910× 1930 | 1500×1910× 1930 |
噴嘴數量Nozzle number（個）（a） | 6 | 12 | 24 | 24 | 24 |
風速wind（m/s） | 20~28 | ||||
電源power | 3N 380V 50HZ | ||||
功率Power（KW） | 0.75 | 1.5 | 4.5 | 4.5 | 4.5 |
適合人數 Suitable Numbers | 1~2 | 1~2 | 2~4 | 多人many | 多人many |
