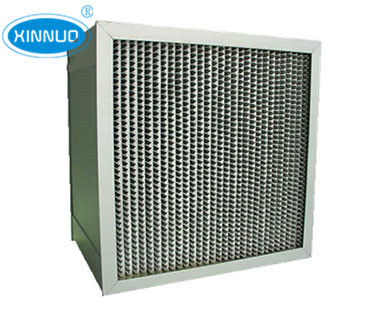

耐高濕高效空氣過濾器
High temperature resistant efficient air filter
特點Features
●阻力低、容塵量大
●耐濕度性能好
●適用高濕條件下，物別是醫藥輸液生產等高濕度環境的
空氣凈化
●Low resistance and large amount of dust
●Humidity resistant properties
●Suitable humidity conditions, especially medicine production
of high humidity infusion, air purification
構成材料及運行條件Materials and operating conditions
●框材：金屬外框 ●密封物：聚胺脂膠
●External frane：Metal frame ●Sealant：Gel-glue
●分隔物：鋁箔 ●濾料：特種防潮玻纖濾紙
●Filter media： Aluminum foil ●Filter media：Special moistureproof fiberglass filter
●使用最高溫度、濕度：80℃、100%
●Use the highest temperature, humidity：80℃、100%
型號尺寸及其他參數(Standard specification)
型號 model | 外形尺寸 Outside dimensions (mm) | 額定風量 Rated air flow (m3/h) | 初阻力 Imitial resistance (Pa) | 效率（納焰法） Efficiency (%) | 容塵量 Dust capacity (g) |
XN-5J | 305×610×150 | 500 | ≤200 | ≥99.99 | 300 |
XN-7.5J | 460×610×150 | 750 | ≤200 | ≥99.99 | 450 |
XN-10J | 610×610×150 | 1000 | ≤200 | ≥99.99 | 600 |
XN-15J | 915×610×150 | 1500 | ≤200 | ≥99.99 | 900 |
